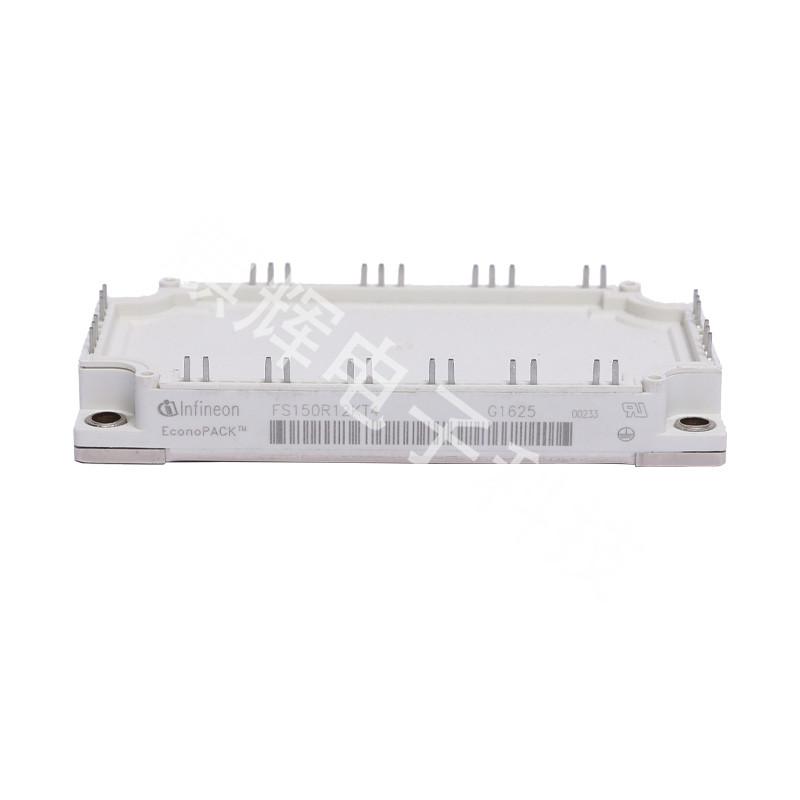

FS150R12KT4
指标参数

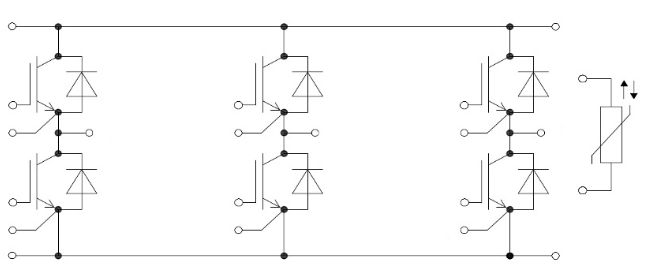

Parametrics FS150R12KT4 Configuration Sixpack Dimensions (width) 62.0 mm Dimensions (length) 122.0 mm Housing EconoPACK™ 3 IC(nom) / IF(nom) 150.0 A IC max 150.0 A Qualification Industrial Technology IGBT4 - T4 VCE(sat) (Tvj=25°C typ) 1.75 V VF (Tvj=25°C typ) 1.7 V Voltage Class 1200.0 V
