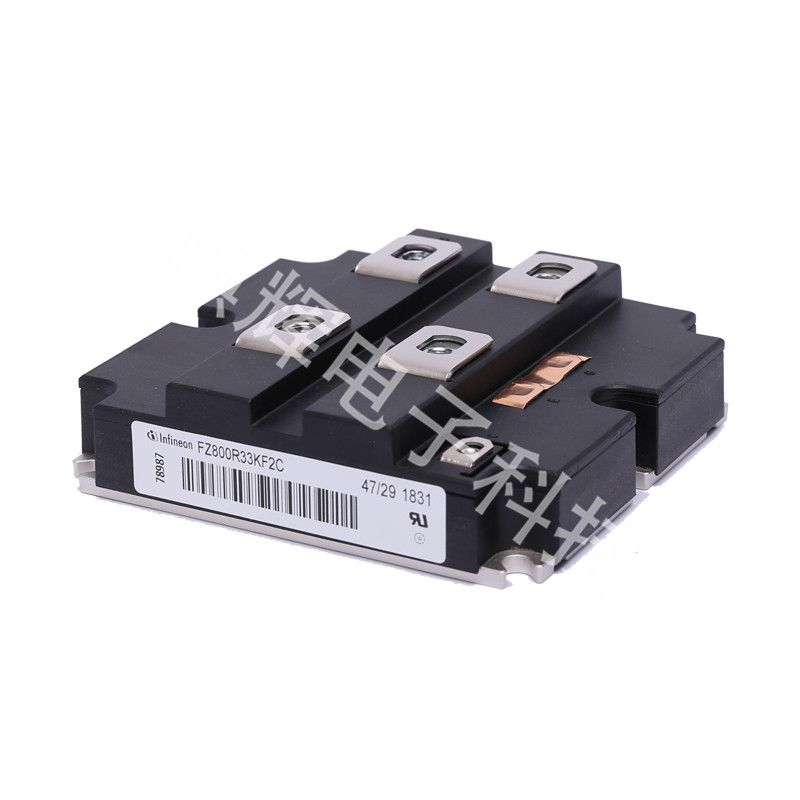

FZ800R33KF2C


arametrics

ParametricsFZ800R33KF2C

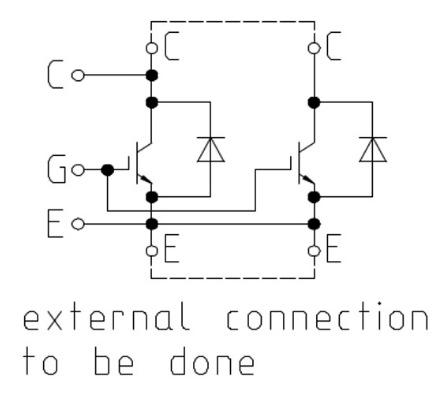

ConfigurationSingle switch
Dimensions (width)140.0 mm
Dimensions (length)130.0 mm
HousingIHV
IC(nom) / IF(nom)800.0 A
IC   max800.0 A
QualificationIndustrial ; Traction
TechnologyIGBT2
VCE(sat) (Tvj=25°C typ)3.4 V
VCES / VRRM3300.0 V
VF (Tvj=25°C typ)2.8 V
Voltage Class3300.0 V
